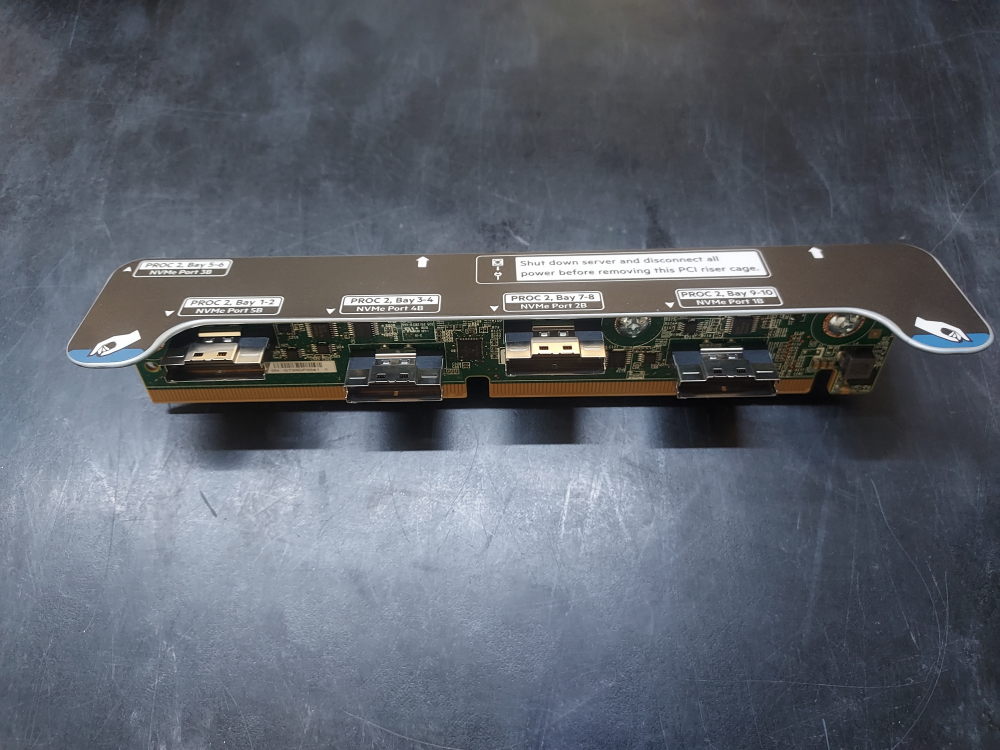

This is an NVME riser. It enables NVME support on the HP DL 360 G10 10 Bay server. NVME cables connect from the backplane and then feed into this riser.
Notes:
- Secondary NVMe riser board; not a storage controller.
- Used with the 875556-001 10SFF Premium SAS/SATA/NVMe backplane for NVMe drive support.
- Requires the appropriate NVMe cables between the riser and the backplane.
- Provides PCIe connectivity required for direct NVMe drive attachment.

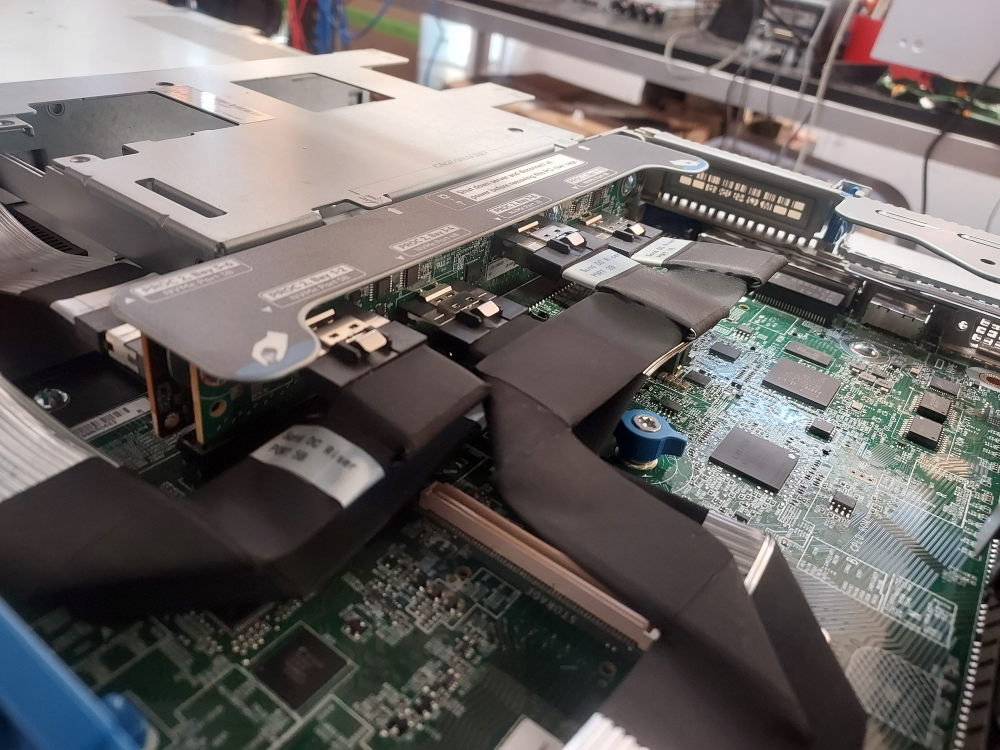

- Installed in the secondary PCIe riser position of the DL360 Gen10.
- Not required for standard SAS/SATA-only configurations.
- Part of the DL360 Gen10 NVMe enablement hardware ecosystem.
Additional photo(s):
