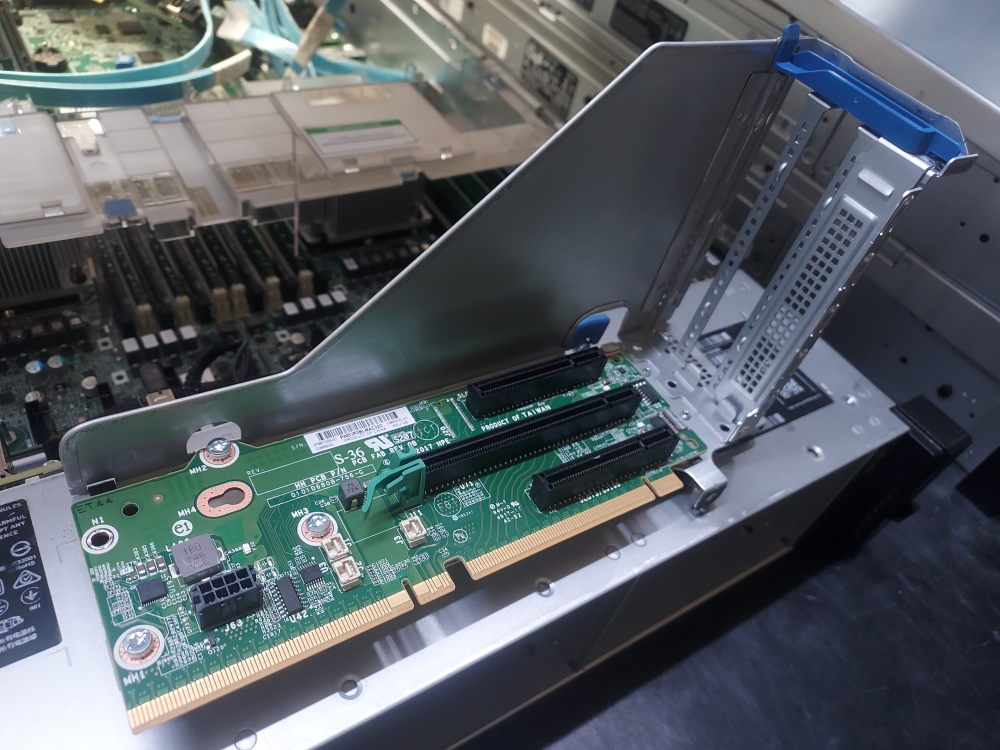

This is one variation of riser seen in HP DL 380 G10 servers.
Notes
- PCIe riser board providing one PCIe x16 slot and two PCIe x8 slots for expansion cards.
- Designed for use in HPE ProLiant DL380 Gen10 servers and is also used in certain DL385 Gen10 and DL560 Gen10 configurations.
- Installs into the server’s riser connector to add support for additional PCIe adapters such as network adapters, Fibre Channel HBAs, RAID controllers, SAS controllers, NVMe adapters, and other expansion cards.
- PCIe slot availability depends on the server chassis, installed processors, and overall system configuration. Some slots may require a second processor to be installed before they become operational.
- Compatible expansion cards must meet the server’s physical, power, and thermal requirements.
- HPE option kit 873209-B21 includes this riser board as its primary component.
