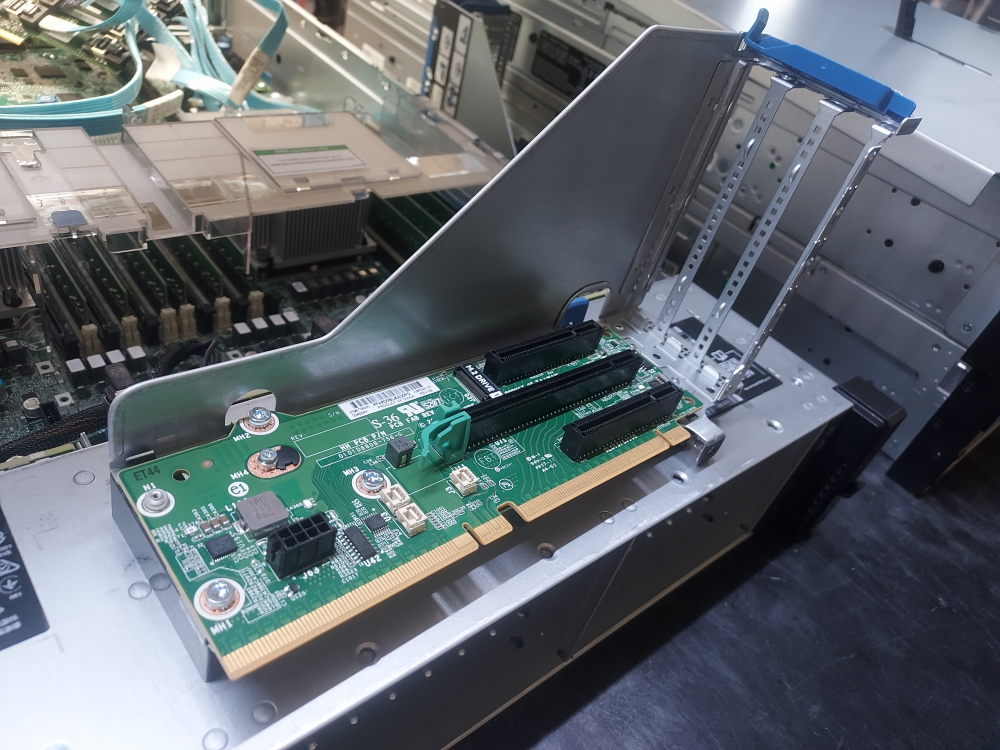

This is another variation of the riser found in HP DL 380 G10 servers. This one has an M.2 slot.
Notes
- PCIe riser board providing two PCIe x8 slots and one PCIe x16 slot, with integrated support for an M.2 storage module.
- Designed for use in HPE ProLiant DL380 Gen10 servers and is also used in several Gen10 platform variants, including select SimpliVity and Azure Stack systems.
- Enables installation of PCIe expansion cards such as network adapters, Fibre Channel HBAs, RAID controllers, SAS controllers, NVMe adapters, and an M.2 boot device (with compatible hardware).
- PCIe slot availability depends on the server configuration. Some slots and features require a second processor to be installed before they become operational.
- Compatible expansion cards and M.2 devices must meet the server’s physical, power, thermal, and firmware requirements.
