  • Supermicro RSC-R2UW-4E8 Riser

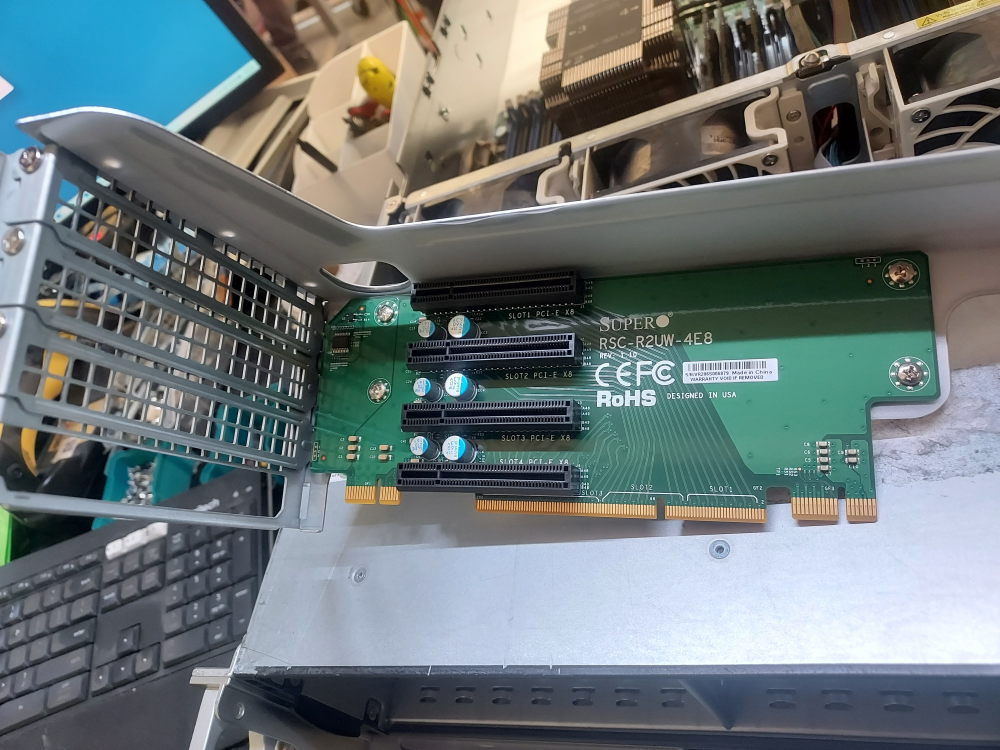

    Supermicro RSC-R2UW-4E8 Riser

    This is a riser card pulled from a Supermicro SYS-2029U-E1CRT 2u server.

    Notes:

    • Provides four full-height PCIe x8 expansion slots from a single WIO connector.
    • Passive riser—PCIe lane allocation is determined by the motherboard.
    • Intended for storage controllers, NICs, Fibre Channel HBAs, capture cards, and other PCIe x8 devices.
    • If using with an X10 or X11 WIO platform, ensure the riser is Revision 1.10 or newer. Earlier Rev. 1.02 boards were intended for X9 systems and may have compatibility issues (such as chassis intrusion detection problems).
  • MCP-310-82922-0N Right Air Shroud

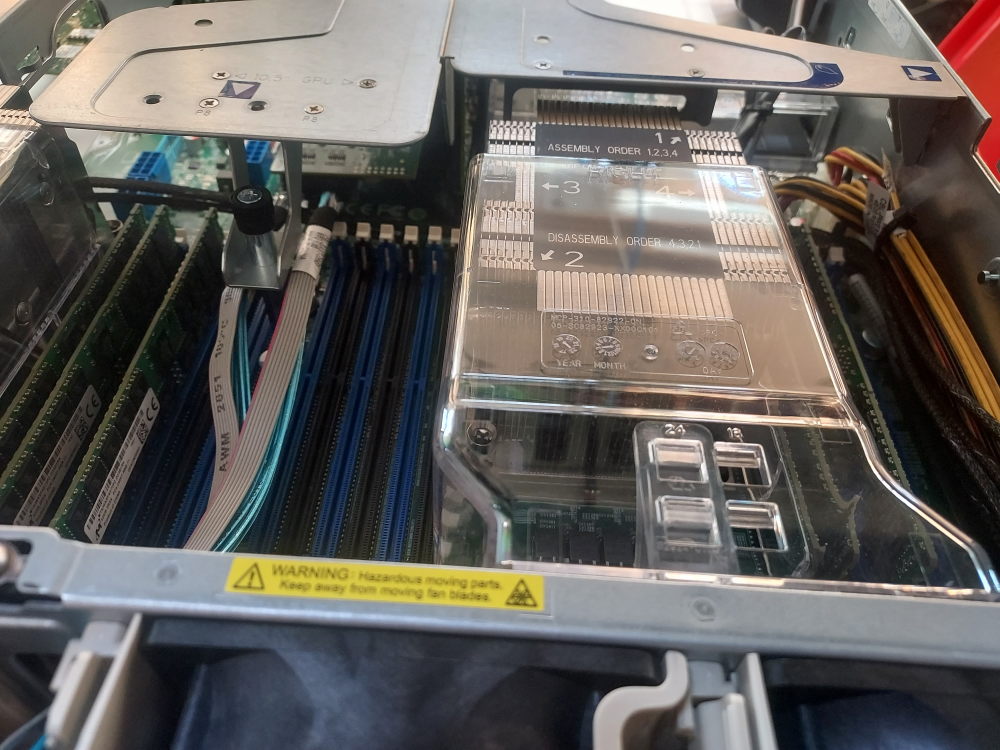

    MCP-310-82922-0N Right Air Shroud

    This is the right CPU air shroud for select Supermicro servers.

    Notes

    • Right-side companion to MCP-310-82921-0N (left-side air shroud).
    • Helps ensure proper airflow over the processors and memory.
    • Should be installed whenever the server is operating to prevent elevated CPU and DIMM temperatures.
    • Supermicro support identifies MCP-310-82921-0N (left) and MCP-310-82922-0N (right) as the correct air shrouds for the SYS-6029U-E1CR4T platform.
  • Supermicro MCP-310-82921-0N LEFT Air Shroud

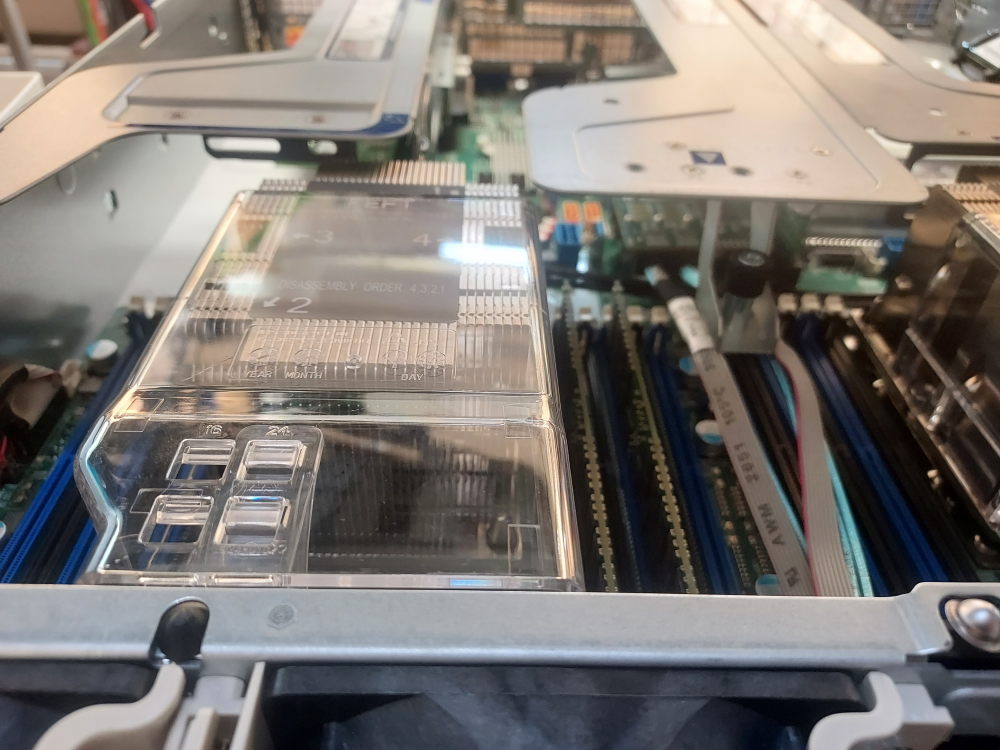

    Supermicro MCP-310-82921-0N LEFT Air Shroud

    This is a custom CPU cover for certain 2U servers from Supermicro. It functions like an air shroud and directs and funnels air straight to the CPU. The left CPU and right CPU have different molds of this shroud. This cover is for the left CPU.

    Notes

    • Designed specifically for Supermicro 2U chassis.
    • Required to maintain proper airflow over the processors and memory.
    • Removing or operating without the air shroud can significantly increase CPU and DIMM temperatures.
    • Typically installed with SNK-P0068PS CPU heatsinks in the supported systems.

  • Supermicro SYS-2029U-E1CRT

    Compatible Parts

  • Supermicro SuperServer SYS-5019S-MR Riser

    Supermicro SuperServer SYS-5019S-MR Riser

    This is the riser found in the Supermicro SuperServer SYS-5019S-MR.

    Notes:

    • Supermicro PCIe riser card for 1U server chassis
    • Provides one horizontal PCIe x16 expansion slot
    • Designed for installation of PCIe add-in cards where vertical card mounting is not possible due to limited chassis height
    • Passive riser (no active signal conversion)
    • Connects to a motherboard PCIe x16 riser connector
    • Supports PCIe expansion cards such as:
    • Requires a compatible Supermicro motherboard and chassis
    • Intended for Supermicro 1U SuperServer platforms
    • Verify exact system compatibility before installation
    • Not interchangeable with all Supermicro x16 risers due to different orientations and mounting positions
