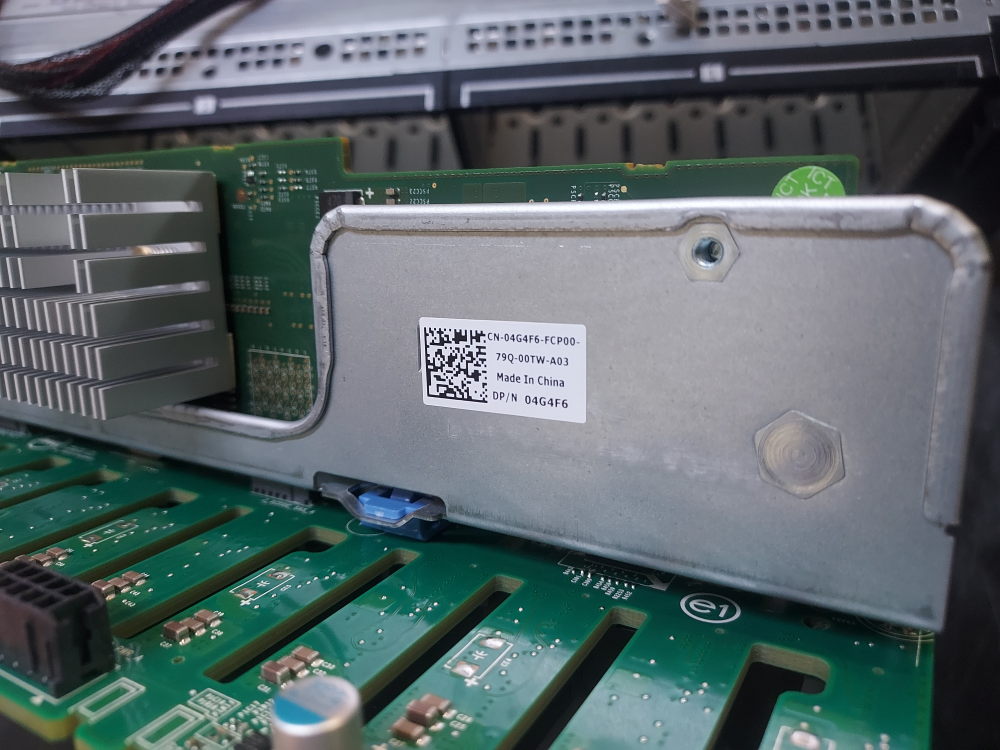

This is the assembly cage for the R730 16 Bay SFF backplane. It is not the backplane itself but rather the mounting bracket that the main backplane PCB and SAS expander attach on to.
Notes:
- Dell P/N: 04G4F6 / 4G4F6
- Type: 16-bay 2.5-inch SFF backplane assembly/cage
- Compatible server: Dell PowerEdge R730
- Important: 04G4F6 is the mechanical backplane assembly/cage, not the backplane PCB itself.
- The 07K5HK is the actual 16-bay SFF backplane PCB.
- The 0DTCR0 is the SAS expander board associated with the 16-bay configuration.
- The assembly/cage provides the physical mounting structure for the backplane and drive bays.
- Supports a 16 × 2.5-inch SFF drive configuration when populated with the appropriate backplane and associated components.
