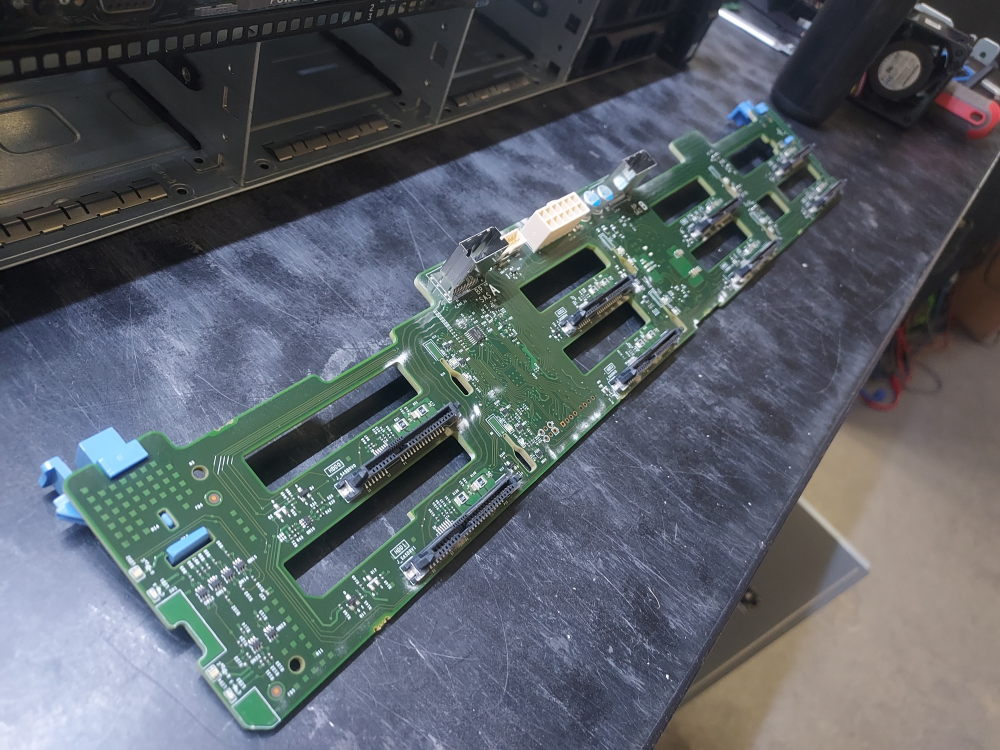

This is the primary backplane for the Dell PowerEdge R530 8 Bay LFF server.
Notes
- Provides connectivity for eight 3.5-inch SAS/SATA drives.
- Designed for the PowerEdge R530 8-LFF configuration.
- The board has two SAS connections for connecting the drive bays to the server’s storage controller. A Dell community discussion also identifies the board as having a 6×2 12V power connector and a smaller motherboard connection.
- 0KKFN7 and KKFN7 refer to the same backplane.
- This is an LFF backplane, so it should not be confused with the various 2.5-inch SFF R530 backplane configurations.
