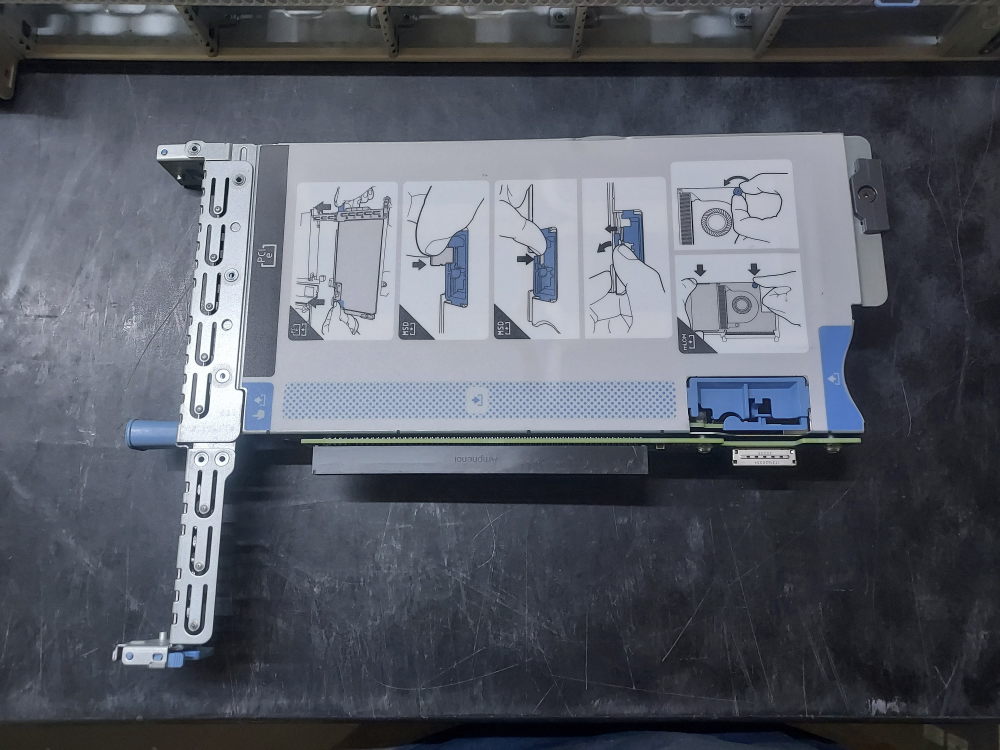

This Riser number 2 found in the Cisco UCS C220 M5 server. It sits to the left of the mRAID riser.
Notes
- Genuine Cisco OEM PCIe riser card assembly for the Cisco UCS C220 M5 Rack Server.
- Provides additional PCI Express expansion capability for installing supported PCIe adapter cards.
- PCIe slot configuration:
- 1 × PCIe x16 slot
- 1 × PCIe x8 slot
- Supports installation of Cisco-qualified PCIe adapters including network interface cards, Fibre Channel adapters, SAS/HBA controllers, and other expansion cards.
- Installs into the dedicated motherboard riser connector and positions PCIe cards vertically within the 1U chassis.
- Maintains proper card retention, airflow, and mechanical alignment inside the server.
- PCIe generation is dependent on the UCS C220 M5 platform and installed CPU configuration.
- Requires compatible processor configuration for full PCIe lane availability.
- Not interchangeable with the C220 M4 or C220 M6 riser assemblies.
- OEM Cisco hardware ensures correct electrical connection, slot alignment, and chassis compatibility.
- Common replacement part for systems missing risers after hardware refreshes or decommissioning.
- Includes the riser PCB and mounting bracket assembly. PCIe adapter cards and mounting hardware are not included unless specified.
